Create a New Default Layout

OEC Trader allows the user to create, name, and save different views in the Default Layout window to access. Refer to the following figures that illustrate the example of moving the Account Summary window (from the upper left corner of the view) to the very top of the layout window.

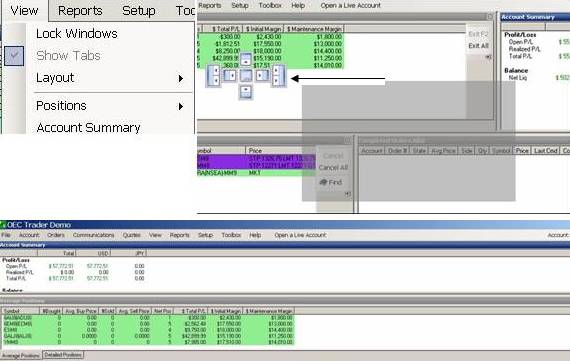

  1. To change the view, click on View, deselect (uncheck) Lock Windows so that there is no checkmark. Refer to the Figure below.

  2. Place the cursor on the title bar of the window, left click and drag it to the new location.

  3. To move the window, hold down the left click and drag it to the new location. This creates a grey shadow and displays the layout marker tool.  Refer to the right Figure below.

  4. Place the cursor in the blue part of the box and release the object to the new location. Refer to the lower Figures below. The Account window is now located above the Average Positions in the lower Figure.
