Change an Indicator Line

To increase visibility and create contrasting lines in an open existing chart, use the following the procedures in this example.

1. To darken the lines of the ADX (lower graph) double click on one of the lines to open the properties window.

2. Click on Styles (Collection) row to open the Series box.

3. Click under Width to select a thick line weight.

4. Click under Style to select a Dash pattern.

5. Check the Save as Default to store the setting.

6. Review the new chart on the following page. Refer to the Figures below.

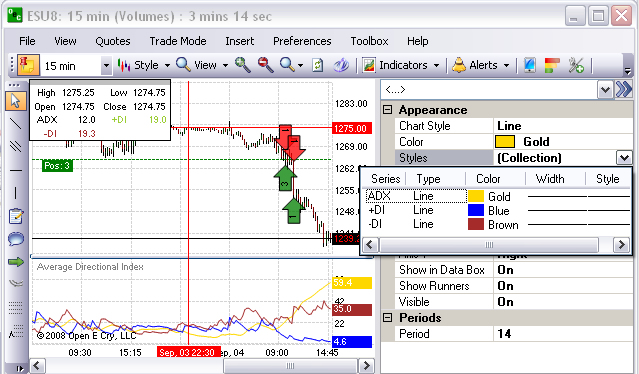

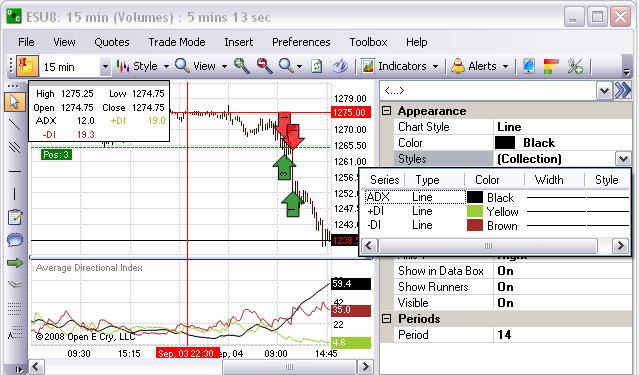

Compare the indicator lines in the two Figures below. The red box displays the blue and black lines with a heavier line weight as compared to the green dash line on the graph.
